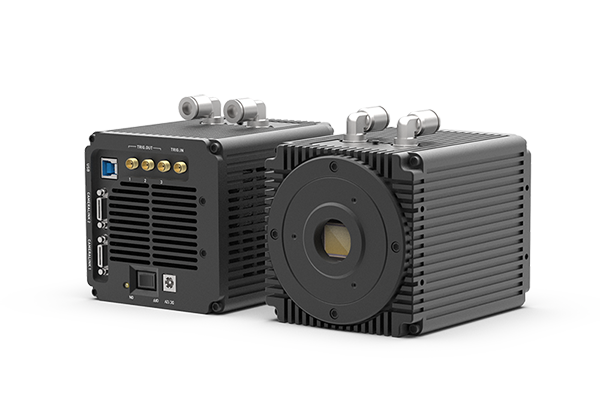

Dhyana 95V2
sCMOS Camera for Confocal Microscopy imaging
- 95%@560nm Peak QE
- 11μm x 11μm Pixel Size
- 2048 x 2048 Resolution
- 48fps@12bit STD
- CameraLink & USB3.0
產品介紹
In a confocal microscope, the illumination and detection optics are focused on the same diffraction-limited spot in the sample, which places high demands on the sensitivity and signal-to-noise ratio of the detector. The Dhyana 95V2 is designed to deliver ultimate in sensitivity achieving similar results to EMCCD cameras for the confocal microscopy imaging, offering more functionality and improvements in background quality due to our exclusive calibration technology.
-
寬光譜成像，高信噪比

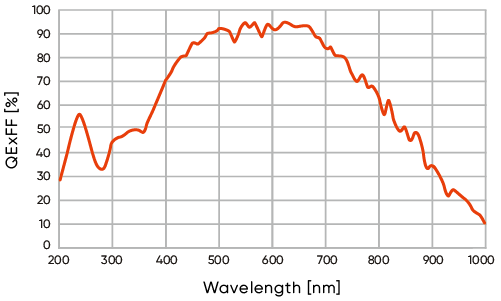

采用背照式sCMOS技術，具有200nm-1100nm的寬光譜響應能力，峰值量子效率高達95%QE，讀出噪聲僅1.5e-。具有顯著的高信噪比優勢，非常適合弱光成像應用。
-

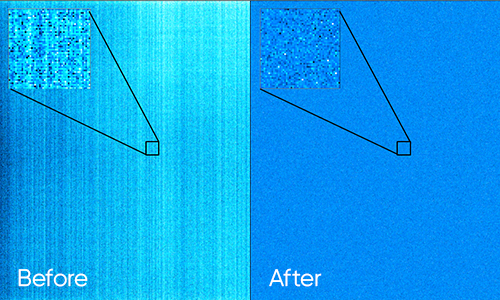

先進定量校準技術
采用鑫圖先進的定量校準技術（如DSNU／PRNU），相機成像背景質量更高，定量分析更精準，幫助科學研究獲得可信賴的結果。
-
100ke-高滿阱，高動態優勢
得益于11μm大像元的本底優勢，Dhyana 95V2的滿阱容量可高達100,000個電子，有助于同時測量強、弱信號，非常適合復雜光場環境應用。
技術參數 >
- Model: Dhyana 95V2
- Sensor Type: BSI sCMOS
- Sensor Model: Gpixel GSENSE400BSI
- Color/Mono: Mono

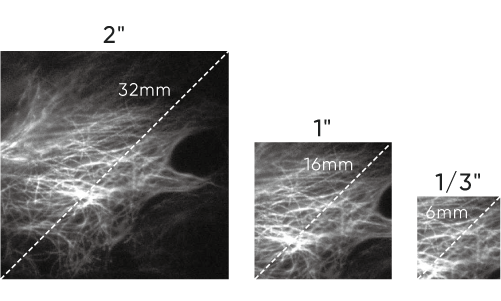

- Array Diagonal : 31.9mm
- Resolution: 4MP, 2048(H) x 2048(V)
- Pixel Size: 11μm x 11μm
- Effective Area: 22.5mm x 22.5mm
- Peak QE: 95%@560nm
- Frame Rate: 24fps@16bit HDR, 48fps@12bit STD
- Full-Well Capacity: Typical: 80ke-@HDR; 100ke-@STD
- Dynamic Range: 90dB
- Shutter Type: Rolling
- Readout Noise: 1.6e-(Median)/1.7e-(RMS)
- Exposure Time: 21μs~10s
- DSNU: 0.2e-
- PRNU: 0.3%
- Cooling Method: Air & Liquid
- Cooling temperature: 45℃ below ambient
- Dark Current: Air：0.5e-/pixel/s，Liquid：0. 25e-/pixel/s
- Optiona Interface: C-mount & F-mount
- Data Interface: USB3.0 & CameraLink
- Data Bit Depth: 16bit
- Binning: 2x2, 4x4
- ROI: 2048x1024, 2048x512, 1608x1608, 1200x1200, 1024x1024, 512x512, 256x256
- Timestamp Accuracy: 1μs
- Trigger Mode: Hardware & Software
- Output Trigger Signals: Exposure, Global, Readout, High level, Low level
- Trigger Interface: SMA
- Power Supply: 12V/8A
- Power Consumption: 60W
- Dimensions : C-mount: 100mm x 118mm x 127mm；F-mount: 100mm x 118mm x 157mm
- Weight: 1613g
- Software: Mosaic / LabVIEW / Matlab / Micromanager / MetaMorph
- SDK: C / C++
- Operating System: Windows/Linux
- Operating Environment: Temperature 0~40°C / Humidity 10~85%
應用方向 >
Download >
-
Dhyana 95V2 Brochure
-
Dhyana 95V2 Dimension
-
Software-Mosaic V1.6.8
-
Plugin-Labview ( with user guide )
-
Plugin-Matlab ( with user guide )
-
Plugin-MetaXpress ( with user guide )
-
Plugin-Micromanager ( with user guide )
-
Driver-TUCam Camera Driver V1.4.0.8
相關產品 >
-

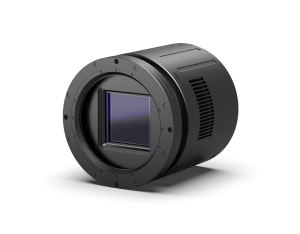

Dhyana 6060BSI
大面陣高動態sCMOS相機
- 95% QE @ 580 nm
- 10 μm × 10 μm
- 6144 (H) x 6144 (V)
- 26.4 fps @ 36MP
- CoaXPress 2.0
-

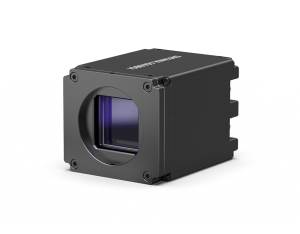

Dhyana 4040BSI
大面陣高動態sCMOS相機
- 90% QE @ 550 nm
- 9 μm × 9 μm
- 4096 (H) x 4096 (V)
- 16.5 fps @ 16MP
- CameraLink & USB3.0
-

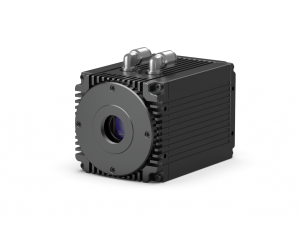

Dhyana 400BSI V2
高靈敏度sCMOS相機
- 95% QE @ 600 nm
- 6.5 μm × 6.5 μm
- 2048 (H) x 2048 (V)
- 74 fps @ 4.2 MP
- CameraLink & USB3.0
-

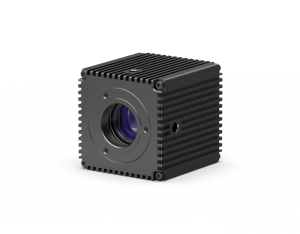

Dhyana 401D
